Looking for a reliable Resilient Seated Flanged End Gate Valve provider? We offer a wide range of options including DN150, PN10, and PN16 specifications, as well as 6 Inch and Class 150 LB designs. Our valves are manufactured to meet standards such as BS 5163 and EN 558/3, featuring a durable GGG50 Body, corrosion-resistant Stainless Steel Stem, and secure A2 Bolts. Explore our high-quality gate valves for dependable performance.

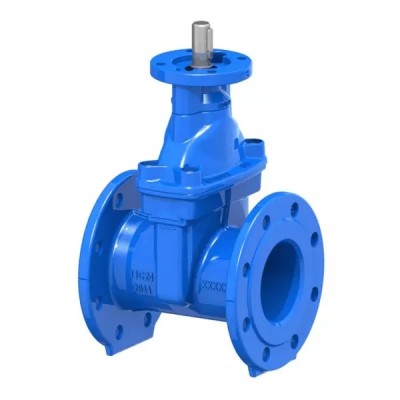

Flanged End Resilient Seated Gate Valve, PN10/16, ductile iron Body, NBR/EPDM seat, Handwheel, BS 5163, EN 558-3, ductile iron, act. flange, stainless steel stem, A2 bolts

Valve Description:
1871004 Resilient Gate Valve 6GS16RG50
Design Standard: BS 5163, EN 558/3
Structure: Resilient Seat
Nominal size: DN150
Nominal class: PN10, PN16
End Connection: Flanged End, EN 1092
Operation: /
Body Material: GGG50
Trim Material: GGG5+NBR/EPDM
Face to face: EN 558 Table 2 Basic Series 3
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and wastewater to max. 70° and max 10% solid matter, WRAS-approved materials available

Discover top-quality API 608 ball valves with a 1-inch X 3/4-inch size, DN25 X DN20 specifications, suitable for 800 LB and PN130 applications. Crafted from ASTM B150 C63200 material, these valves adhere to API 6D and ISO 17292 standards. Featuring a three-piece design, soft seat, side entry, and bolted bonnet, with SW end for optimal performance.

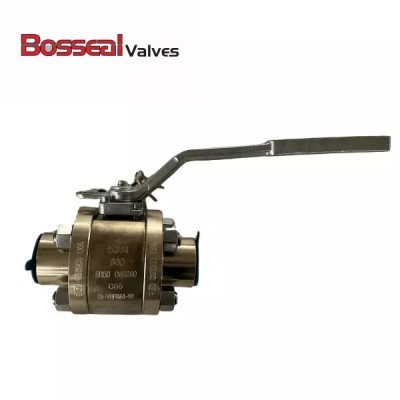

1 X 3/4 Inch, 800 LB, Floating Ball Valve, SW End, ISO 17292, C63200 body and Trim, RPTFE seat and lever operation

Valve Description:
1812048 Floating Ball Valve 1BB8SC632
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1 Inch X 3/4 Inch, DN25 X DN20
Nominal class: 800 LB, PN130
Bore Type: Reduced Bore
End Connection: SW
Operation: Lever Lockable
Body Material: ASTM B150 C63200
Trim Material: ASTM B150 C63200, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

China Bosseal Valves Co., Ltd ( https://www.bossealvalves.com/ ) is a professional industrial valve manufacturing company in Suzhou, China, founded in 2013 with an international sales office and facilities of forging, machining, and valve production workshops.
