RSL PB can be used in conjunction with ordinary guide rollers to mount on nearly all popular pedestal bearings. Maximum operating reliability due to overload protection of up to ten times the nominal measuring force (depending on the application). Through 1:25 resolution, the measuring range is quite large. Fully assembled double bending section with strain gauges in a full bridge configuration Because of easy access to the pedestal bearings, guide roller replacement is straightforward.

https://rudrrasensor.com/products/rsl-pb

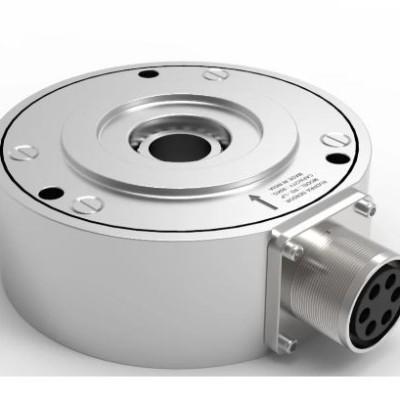

The load cell used for web tension management is composed of a stable outer ring with a flange cover and a centering collar for precision assembly, as well as a centering collar for precision assembly. Ball bearings are installed with their centers aligned by means of an inner ring in the shape of a bidirectional strip. The radial forces generated by the web cause the strain gauges connected together to form a measuring bridge on the inner ring to become unbalanced and unusable. This results in an analogue output signal that is proportional to the tension of the web.

AREA OF USE

A wide range of processing plants, including those that process or finish web-type materials, can benefit from the usage of flange load cells for web tension control. It is critical, in particular in front of processing units that the web is delivered with a constant web tension during the whole transport operation.


APPLICATION

A measuring roller with a 90° horizontal-vertical wrapping angle and a horizontal measuring direction is used to obtain the most precise measurement of web tension. When measuring web tension, the tension sensor must be capable of sensing bearing pressures on both sides of the web at the same time in order to avoid incorrect data caused by the web sliding sideways and an asymmetrical web tension distribution. Whenever possible, load cells that are employed in a closed loop should be located as close to the actuator as is feasible.

https://rudrrasensor.com/products/rsl-lp

Load cell RSL 60048 uses the strain gauge principle to measure force and displacement. It is created for use in applications where high accuracy, repeatability, and reliability are required.

Furthermore, Load cell RSL 60048 is suitable for use in harsh environments, including extreme temperatures, vibration, shock, dust, and humidity. Also, it has an overload protection feature that will prevent damage from occurring when excessive loads are applied.

Load cell RSL 60048 offers you the following advantages:
High sensitivity
Low drift
Wide measuring range

Our organization has gained expertise in manufacturing a quality assured load cell including its newly launched model RSL-60048. This model is popular as construction machinery load cell. It can be used in weighting application for high precision output. This load cell is specially made for dynamic load measurement. The offered load cells are manufactured under the expert supervision of our professionals using supreme quality raw material at our vendors' end. We also provide load cell in various capacities and specifications given by our buyers.

https://rudrrasensor.com/products/rsl-60048

Heavy Platform Load Cell RSL 810
This product has been made to be small and light so that it can be used easily.
It's so low-profile that the manufacturers have done a great job.
It's made of the best tool steel, which makes it the best at what it does.
This has a support platform that can be up to 900 x 900 mm wide and long.
It is very durable, has a great finish, and is very easy to clean and maintain.
The Stainless Steel Load Cell (RSL 810) has been designed keeping in mind that our clients should get only the best from our end. This product is absolutely perfect for large platform scales as well as steel weighers.The following characteristics of the product shall further describe the true nature of the equipment:

Therefore, it can be seen clearly that we at Rudrra have been very careful in selecting the best materials while designing the tool. The low profile nature of the equipment is perfect for its application in every purpose. The product is available at a reasonable price range online.

https://rudrrasensor.com/products/rsl-810

Top Quality RSL-651 at the Best Price in India

The smallest strain gauge sensor available is a RSL 651 load cell, Rudrra Sensors, in comparison to their competitors, provides expert specialized assistance in the development of custom-made solutions, as well as more flexibility, linearity, and accuracy.

RSL 651 comes with low capacities which can be used for micro mesurement in the field of jwellery weighing, pharmaceutical labs and other precision loa weight application.

Miniature Load Cells are something we specialize in both creating and providing. The long-term dependability and precision of our RSL 651 industrial goods, for example, have earned them a reputation for excellence. They are created to order in order to meet the specific needs of the consumer in question.

https://rudrrasensor.com/products/rsl-651
